Almost 70% of field techs increasingly choose compression-style fittings over solder for tight or gas-service installations. This change highlights the essential need for reliable, leak-resistant joints on today’s worksites.
Browse Products For 1 4 Compression Fitting
This streamlined guide delves into Compression Union Brass and other compression-style fittings found in plumbing, HVAC, and instrumentation work in the U.S.. It offers useful guidance on picking the correct 1/4 compression fitting, fitting brass union fittings, and fixing leaks. It also explains material compatibility.
Whether you’re a working plumber, heating-and-cooling technician, instrumentation specialist, or a capable DIYer, this guide is for you. It focuses on real-world applications: ease of installation, reusability, and the practicality of brass unions when soldering is not feasible. We’ll compare 1/4 inch compression fittings vs couplers, calling out their top applications.
For parts and supplies, InstallationPartsSupply.com is a go-to supplier for brass compression union components, nuts, and olives. They offer properly matched components quickly. The sections ahead detail sizing guidance, pressure ratings, and installation tips to minimize leaks and cut down on return visits.
Key Takeaways
- Compression Union Brass delivers a solder-free, serviceable connection for various tube types.
- Brass compression union fittings are ideal for tight spaces and field repairs.
- 1/4 compression fitting and 1/4 inch compression fitting formats are widely used in plumbing and instrumentation systems.
- InstallationPartsSupply.com carries nuts, ferrules, and union bodies for fast replacement and matching.
- Correct selection and installation minimizes leaks, with clear steps included later in the guide.

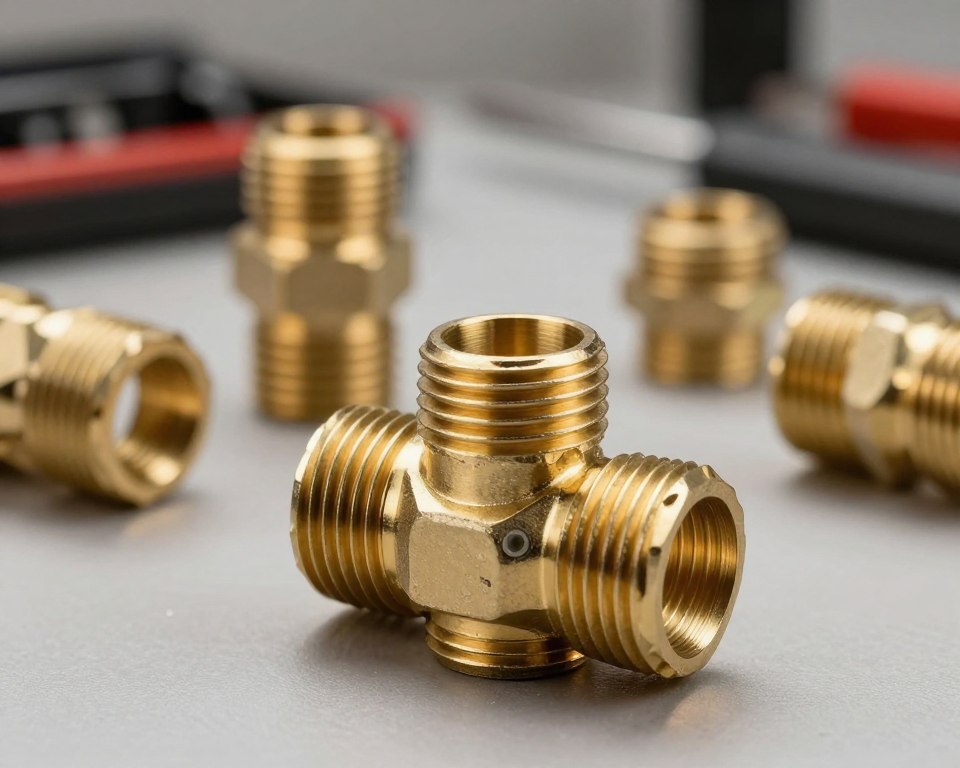

What Are Brass Compression Union Fittings And How They Work
A brass compression union fitting joins two tube sections without soldering. It includes a fitting body, a nut, and ferrules for a leak-tight seal. The 1/4compression fitting is often used in instrumentation, refrigeration, and plumbing service.
Definition And Key Components
The brass compression union assembly consists of three core parts. The union body takes line on both ends. The compression nut threads on to the body, pressing the ferrule into place. The olive seals by setting onto the tube’s outer diameter.
Unions enable the connection of two tube ends in-line without soldering. Each end has its own ferrule and nut, allowing for quick joining of different tubing lengths during field service or job-site repairs.
Operating Principle
To assemble, slide the line into the union body and secure the compression nut. As you tighten moves the nut, which forces the ferrule into the body’s angled bore. This motion converts to radial compression around the tubing.
This radial compression creates a line-contact seal between the ferrule and the tube. A proper fit delivers a metal-to-metal or metal-to-plastic seal depending on materials. Incorrect tightening can deform the ferrule or fail to seat, undermining the connection.
Materials And Compatibility Notes
Brass unions are known for their resistance to corrosion and malleability. They perform well with copper lines and many drinking-water systems. They also can be used on lower-pressure gas lines when installed with gas-grade PTFE tape and stay accessible.
For higher pressures or aggressive fluids, stainless steel fittings are usually preferred. Plastic compression connectors are suitable for light-duty water work. The 1/4compression fitting is available in brass or stainless to match different tube ODs, pressure requirements, and media requirements.
Compression Union Brass: Advantages, Common Uses, And Applications
Brass compression unions combine durability and practicality, making them a great fit for plumbing and instrumentation tasks. They can be set up fast, with no need for the need for a torch, making them perfect for tight or combustible zones. The 1/4 compression union and compact 1/4compression fittings are favored for their compact, dependable connections.
Key Advantages Of Brass Unions
Assembly is rapid and tools-only. No torch or flux and solder is needed, lowering job time and fire risk. Many brass compression union nuts and bodies are designed for reuse, cutting costs on return service work. Ferrules may require replacement after multiple assemblies.
Brass resists corrosion and flexes a bit under stress, producing a secure seal with copper lines. This minimizes galvanic corrosion concerns when paired with copper or certain stainless parts. Makers list many brass compression union products for generous temp and pressure ranges, suitable for both domestic and light-duty industrial work.
Common Applications In The United States
In home plumbing, brass compression unions are frequent under basins, at service valves, and on hot water heater connections. The 1/4 compression coupling is commonly used in drink equipment, ice machines, and small water lines that need easy service access.
Gas service with serviceable copper lines sometimes uses brass compression unions for checks and simple take-apart. HVAC and refrigeration technicians rely on brass union fittings for service lines that must be taken apart and put back together during service.
Instrumentation, laboratory, and industrial panels use space-saving 1/4compression fittings for sampling, sensing, and air lines. These environments value the 1/4 compression union for leak-resistant joints and fast replacement.
Why Pick Unions Over Other Options
Unions save time compared to soldered connections. Without a torch, work can continue in areas where heat would be hazardous or where you need the system back online quickly. A Compression Union Brass union makes possible adjustment and later take-apart service for repairs and changes.
Solder joints are still slimmer and can run less in raw materials. Union-style fittings offer adaptability and service-call advantages, making them the top choice when access, speed, and reuse matter. For many installers, a 1/4 compression coupling strikes the best balance between space-saving size and reliable performance.
Selecting The Right 1/4 Inch Compression Fitting And Related Sizes
Choosing the right fitting involves grasping the terminology and doing a simple parts check. It’s important to know if “1/4” refers to the tube outside diameter or the pipe thread size before ordering. Many catalogs list separate SKUs for tubing, union bodies, and inline joiners under the term “1/4 compression coupling”, “1/4compression fitting”, or “1/4compression coupler”.
Understanding common terms
It’s important to know the core parts: the compression nut, ferrule (olive), union body, and coupler. The nut presses the ferrule against the tube and the taper. A union body joins two connections, while a coupler joins two line ends in a straight run. Always follow the manufacturer’s wording on product pages for exact definitions.
Matching tubing OD, ferrule geometry, and thread pitch
The tubing OD must match the ferrule dimensions precisely. Ferrule profile and body taper angle can change by brand. Using a ferrule from one brand with a fitting body from another can create seepage. Ensure that the thread form and pitch match for matching parts. Distinguish between NPT threads and parallel threads that use sealant methods or O-rings.
Material and soft tubing notes
For PTFE or plastic lines, verify the ferrule design and whether a support insert is required to prevent wall collapse. Brass ferrules seat differently than stainless ferrules. If you need higher resilience to chemical media or high heat, consider stainless options over standard Compression Union Brass.
Pressure and temperature notes
Pressure ratings vary based on material and size. Brass and compact fittings, suitable for instrumentation, will have lower PSI than larger stainless steel fittings. Always check the manufacturer’s pressure and temperature tables for the specific 1/4 compression coupling or 1/4compression coupler you plan to use.
Practical checklist
- Verify whether “1/4” = tubing OD or pipe thread size.
- Pair tubing OD to ferrule size and brand profile.
- Verify thread type and pitch; note NPT versus straight threads.
- Review temp and pressure ratings for Compression Union Brass or alternatives.
- For PTFE/plastic, check need for support inserts or backup seals.
| Item | Typical Use | Key Check | Material Notes |
|---|---|---|---|
| 1/4 inch compression fitting | Air and instrumentation | Check whether 1/4 refers to OD or thread | Brass common; stainless for high pressure |
| 1/4compression fitting (compact size) | Miniature lines, beverage systems | Confirm ferrule geometry match | Certain brands use proprietary ferrules |
| 1/4compression coupler | Inline tube joins | Verify tube OD and internal bore | Plastic tube may require inserts |
| 1/4 compression coupling | Panel joins and instrumentation | Confirm pitch and sealing method | Compression Union Brass is widely used |
| Compression Union Brass | Two-port unions, moderate-pressure systems | Check maker PSI/temp charts | Less suitable for extreme PSI or aggressive media |
Installation Best Practices For Brass Compression Unions
Maintaining a Brass compression union’s long-term performance depends on correct installation. Begin by properly prepping the tubing and parts before any tightening. This early prep is key in stopping leakage and failures down the line.
Preparing tubing for a leak-tight seal
Use a reliable pipe cutter to cut tubing square. Remove any burrs or scratches that could cause leaks. It’s also important to check the tubing’s OD for roundness. Uneven diameters, common in coil tubing, can hinder proper ferrule seating.
Next, slide the compression nut and ferrule (olive) onto the tube the right way. Always use new ferrules, as they provide a dependable seal, even on copper lines. For softer plastic tubing, consider using tubing inserts or reinforced ferrules to prevent wall collapse.
Proper tightening method
Begin by hand-tightening the compression nut. Then, follow the manufacturer’s recommended turns. This approach helps create the right seal without overtightening.
It’s a common mistake that tighter is always better. Insufficient tightening can lead to a bad seal. Tightening too much, on the other hand, can damage the sealing surfaces, threads, or create leaks. After initial tightening, bring to pressure the system and tighten in small increments if slight weeping appear.
Using two wrenches and preventing pipe twist
Hold steady the union body with one wrench while turning the nut with another. This method avoids tubing twisting and reduces stress on joints.
In small spaces, ensure the fitting body is supported and properly aligned before final snugging. This prevents cross-threading issues and ensures the ferrule installation is proper. Proper technique safeguards the fitting from warping and ensures a proper seal.
| Step | Action | Why it matters |
|---|---|---|
| 1 | Cut square, deburr, and inspect OD | Avoids leak paths and promotes even compression |
| 2 | Slide nut and new ferrule onto tubing | Correct ferrule installation gives predictable sealing |
| 3 | Finger-tighten, then turn per spec | Creates a line-contact seal without damage |
| 4 | Two-wrench method: brace body, turn nut | Avoids tube twist and cuts mechanical stress |
| 5 | Pressure-test and adjust in small steps | Stops weeps while avoiding over-tightening |
Troubleshooting Leaks And Maintaining Compression Unions
This section walks through typical leak causes and straightforward fixes for Compression Union Brass assemblies. It walks you through checking the issue, deciding on snugging, component replacement, or sealing method changes. The aim is to ensure a reliable, durable connection for 1/4 compression fittings and other sizes.
How Tight Should You Make A Compression Fitting?
Achieve a watertight seal without distorting tubing or ferrules by tightening the nut to the proper point. Many manufacturers recommend a number of turns past hand-tight over specific torque values. For copper tubing, stop tightening when resistance is felt and apply only a few quarter turns with a wrench.
Too much tightening can misshape ferrules, score tubing, and make difficult later take-apart. Too much compression is a frequent cause of leakage and harm to threading on Compression Union Brass parts.
Steps For Fixing A Leaking Compression Fitting
Start with the most basic step: hold the fitting body firm and tighten the nut a little bit with a second wrench. This often resolves light seepage without full breakdown.
If the leak persists, break down the joint. Remove the nut and ferrule, then inspect the tubing and ferrule for damage. Replace any marred ferrule before reassembling.
Apply approved PTFE tape for gas only for gas service when the manufacturer allows. Do not apply sealant to the ferrule unless directed by the maker. For PTFE tube showing cold flow, use a fitting with an internal o-ring or redundant seal to stop leaks.
Rebuild with a new olive and nut when necessary. Tighten by hand, then finish with the recommended turn count. Test the joint under normal system pressure and watch for slow leaks.
When To Replace Ferrules And Fittings
Replace ferrules showing deformation, scratches, or needing extra turns to seal. Do not reuse ferrules on copper tube for reliable long-term performance.
Replace the union body when internal taper surfaces, internal bores, or threading are marred, or when galling damage has occurred on stainless parts. Source replacement ferrules, nuts, and bodies that match the original manufacturer when possible to avoid mismatch problems.
Ferrule Types, Tubing Options, And Material Considerations
Grasping ferrule styles and tubing options is key to leak-tight seals. This guide compares common ferrule geometries and tubing materials. It helps installers and engineers reduce leaks and minimize rework.
One-piece vs. two-piece ferrules
Single-piece ferrules are basic. A single part seats onto the tubing, making a seal. They work well on softer tubing walls like brass tubing or some plastic tubing. This design also cuts inventory complexity.
Two-piece ferrule systems split the load into a front and a rotating rear ferrule. The rear ferrule separates torque from the sealing face. This design improves long-term reliability for stainless lines and vibration-heavy runs. It’s popular where thread galling and uneven loading are concerns.
Symmetrical versus asymmetrical ferrules
Symmetrical ferrules have a double-cone profile and install both ways. This cuts assembly time when high volume matters. They can shift off-axis more easily, which may lead to small weeps on very hard plastics.
An asymmetrical olive has a tapered shape and must be oriented the right way. It gives better axial alignment and fights off-axis movement. This makes it the preferred choice for precision systems where alignment and repeatable seals matter.
Choosing tubing: metal vs plastic and PTFE concerns
Metal tubing like copper tubing or stainless tubing offers rigid walls that hold consistent contact with the ferrule. Use clean, square-cut ends to maintain seal integrity with 1/4compression fittings and larger sizes.
Rigid plastics like PEEK and PTFE alternatives can work when they are rigid. Softer plastics such as polyurethane and vinyl are a bad fit without reinforcement. Support inserts help when the wall is overly flexible.
PTFE lines brings strong chemical resistance and flex, but it tends to cold-flow under compression and heat exposure. This cold-flow can cause leaks over time. Use fittings designed for PTFE, redundant seals, or internal supports to limit creep when PTFE tubing is required.
| Characteristic | One-piece ferrule | Two-piece ferrule | Symmetrical ferrule | Asymmetrical ferrule |
|---|---|---|---|---|
| Best for | Soft tubing, reduced inventory | Hard tubing, vibration-heavy runs | Quick assembly, reversible | Axial alignment, precision systems |
| Installation sensitivity | Low | Medium (orientation helps sealing) | Low | High (must be installed correctly) |
| Resistance to galling | Low | High | Medium | High |
| Suitability with PTFE tubing | Limited unless supported | Better with support and O-rings | Possible with reinforcement | Preferred for critical alignment |
| Typical use with 1/4compression fittings | Common for general plumbing work | Chosen for instrumentation and gas lines | Used in high-volume builds | Used in precision and high-tech work |
Match ferrule geometry to tubing stiffness, system operating pressure, and assembly quantity. For PTFE tubing, select fittings that include secondary sealing or use tubing inserts. Consult tubing and fitting manufacturers for final compatibility confirmation before installing critical runs.
Comparison: Compression Unions Vs. Soldering And Other Joining Methods
Choosing the right joining method is important for safety, serviceability, budget, and how it looks. Compression fittings are well-suited for tight spots and near combustible materials due to their no-flame installation. Solder joints, on the other hand, delivers low-profile joints that many plumbers favor for visible runs and long-term permanence.
When to pick compression unions over soldering
Select compression unions when torch use is unsafe or limited. A 1/4 compression union or a 1/4 compression coupling allows for rapid fixes without taking large systems offline. Compression Union Brass parts enable quick service access and repeated breakdown for testing or fine-tuning.
Trade-offs compared to soldering
Soldered joints are often lower cost per joint and sit nearer to the pipe for a neater appearance. Soldering can deliver long-lasting, vibration-tolerant connections for many long-term installs. Compression unions, while larger and more expensive per fitting, are a strong option when changes, field changes, or spark-free methods are priorities.
Mixing components and manufacturer compatibility
Do not mix ferrules, nuts, and bodies from different brands unless the supplier verifies compatibility. Differences in taper angle, ferrule lengths, and thread thread pitch can compromise the seal. For critical or high-purity runs, use manufacturer-specified ferrules and parts designed to resist galling and meet clean standards.
Practical checklist
- If space is limited or torch work is unsafe, pick compression-style fittings.
- For long exposed runs prioritizing appearance and permanent joints, consider solder joints.
- Match 1/4 compression union parts by maker when using 1/4 compression coupling assemblies.
- When service access matters, Compression Union Brass units give reliable reuse and fast replacement.
Wrap-Up
Compression Union Brass fittings serve as a reliable substitute for solder in various fields like plumbing, HVAC, gas, and instrumentation work. When properly chosen and installed, they ensure leak-resistant performance. This is achieved without the need for heat or specialized tools.
Adhering to installation basics is essential. Ensure tubing is cut square and select the right ferrule and size, which is essential for a 1/4compression fitting or union. Follow the manufacturer’s guidelines for tightening turns. This step is important to avoid tube twisting and to maintain the ferrule seal quality.
For handling minor leaks, a slight snugging often does the trick. Replace ferrules that show signs of distortion or work hardening. It’s also important to avoid mixing components from different manufacturers to preserve the seal’s reliability. For all your needs, refer to InstallationPartsSupply.com. They offer a wealth of information on sizing charts, pairing ferrules and unions, and locating the right Compression Union Brass components for your project.
